Description

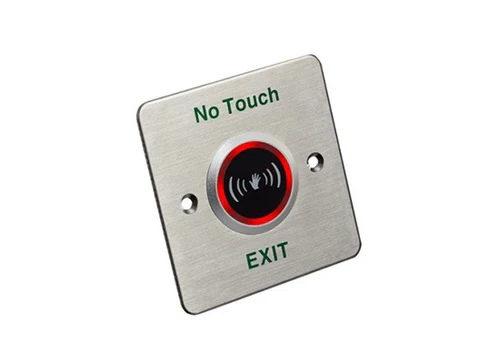

Hikvision Non- touch Exit & Emergency Button - DS-K7P03

New version of DS-K7P03, there is "/T" in the label
Stainless steel panel, Led Indicator
Dimension(L×W×H): 86×86×25.7mm(3.39×3.39×1.01"
Current Rating; 1 A@30 VDC
Output Contact; NO/NC/COM contact
Suitable Doors; All kinds of narrow doorframes

The Hikvision DS-K7P03  is a touch free door exit & emergency button for access controlled doorways where non contact is important, such as schools, laboratories and hospitals.

The contactless sensor is embedded in a stainless steel face plate and is illuminated with white/green/red LED indication lights and the low profile casing is ideal for narrow doorway.

The relay opening times can be adjusted between 0.5 to 20 seconds so the DS-K7P03 can be mounted further away from the door than conventional door exit buttons.

Hikvision DS-K7P03  Features:

Dimension (L x W x H) 86 x 86 x 25.7mm (3.39″ x 3.39 x 1.01″)
Input voltage: 12V DC
Working current: 40 mA (standby), 70mA (working)
Current rating: 1 A@30 VDC
Output contact: NO/NC/COM contact
Panel: Stainless steel
Aging test: Already passed 1 million times aging test
Suitable doors: All kinds of narrow doorframes
Working Temperature: -20ºC to 50ºC (-4ºF to 122ºF)
Working humidity: 0 to 95% (relative humidity)
Detection range (adjustable): 40mm to 120mm (1.57 to 4.72″)
Time delay: 1 to 25s (adjustable)
LED indicator status: Green/red LED indicates working/standby
Product weight: 0.2kg (0.44lb)
