Description

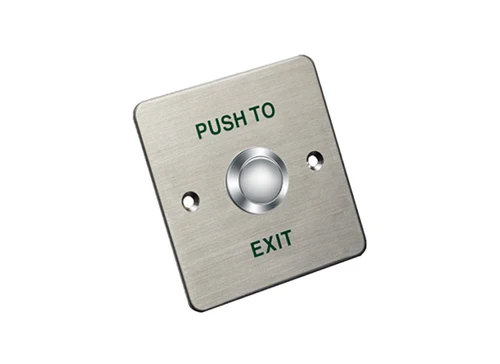

Hikvision aluminum alloy panel, metal button, Dimension(L×W×H): 86×86×20mm(3.39×3.39×0.79")- DS-K7P01

Aluminum alloy panel, metal button
Dimension(L×W×H): 86×86×20mm(3.39×3.39×0.79").
Structure; aluminum alloy panel, metal button
Panel; aluminum panel with sandblast
Output Contact; NO/NC/COM Contact
Suitable Doors; hollow doorframe and embedded-electric box

Hikvision DS-K7P01 Specification
General
Hikvision DS-K7P01 Working Temperature-10°C to +55°C (14°F to 131°F)
Hikvision DS-K7P01 Working Humidity0 to 95% (relative humidity)
Hikvision DS-K7P01 Dimension (L×W×H)86×86×28.9mm(3.39×3.39×1.14″)
Hikvision DS-K7P01 Structurealuminum alloy panel, metal button
Hikvision DS-K7P01 Current Rating3A@36VDC Max
Hikvision DS-K7P01 Output ContactNO/NC/COM Contact
Hikvision DS-K7P01 has Aging Testalready passed 500 thousand times aging test
Hikvision DS-K7P01 has Panelaluminum panel with sandblast
Hikvision DS-K7P01 Product Weight0.25kg (0.55lb)
Hikvision DS-K7P01Suitable Doorshollow doorframe and embedded-electric box
