Description

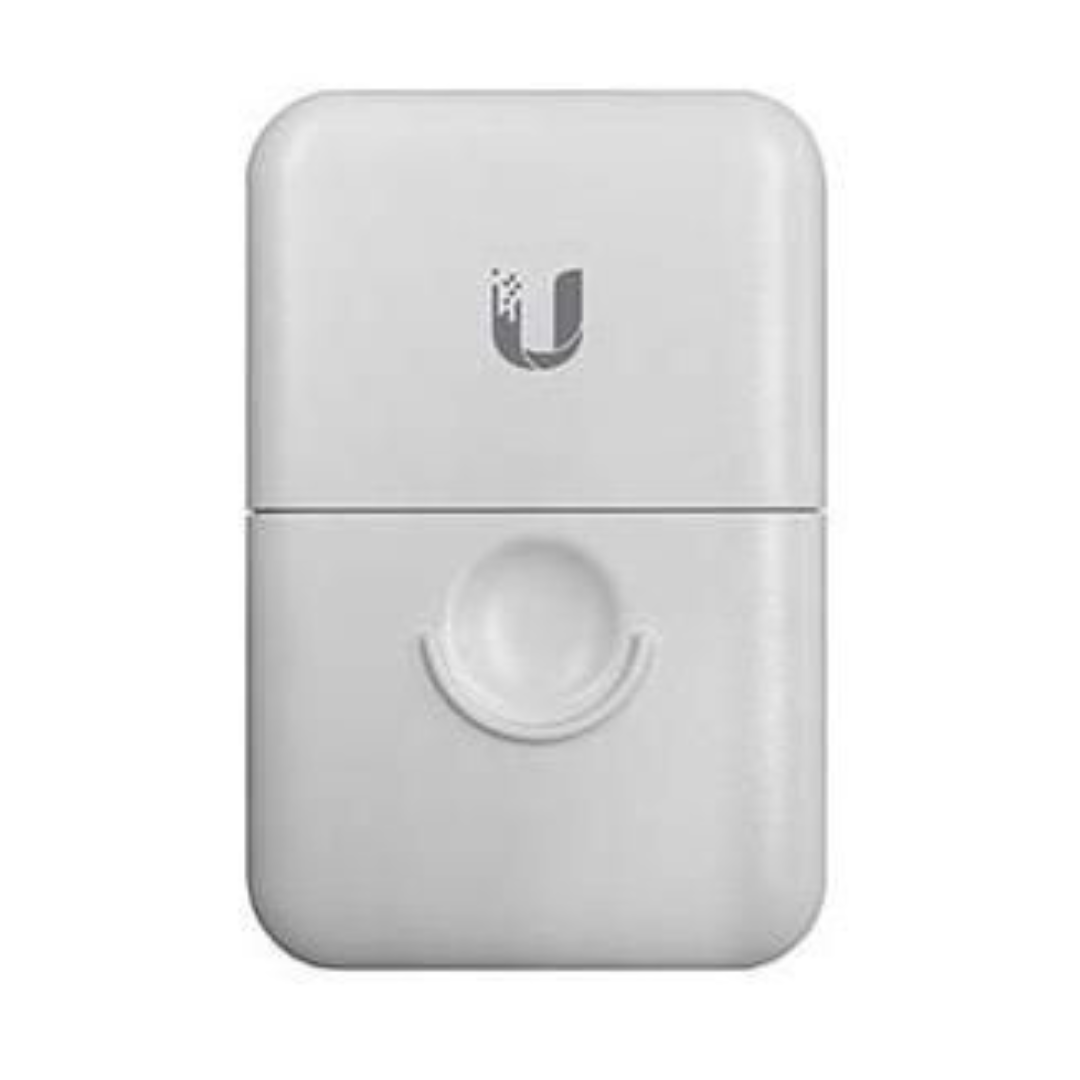

Ubiquiti Ethernet Surge Protector Gen 2- ETH-SP-G2

The Ubiquiti ETH-SP-G2 generation Ubiquiti Networks Ethernet Surge Protector safeguards your outdoor non-PoE and PoE-based systems from voltage threats such as surges and electrostatic discharge events, which can render an entire network system inoperable. This Ubiquiti ETH-SP-G2 protector is suitable for use with surveillance cameras, access points, and other Ethernet-equipped devices. Ubiquiti Networks has designed Ubiquiti ETH-SP-G2 with two surge-protected Ethernet ports that support Gigabit connection speeds. Furthermore, an external housing guards the Ethernet ports along with the surge protector from outdoor elements.

ESD Protection for Outdoor High-Speed Networks

Introducing the Ethernet Surge Protector, model Ubiquiti ETH-SP-G2, from Ubiquiti Networks. The Ubiquiti ETH-SP-G2 is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the Ubiquiti ETH-SP-G2 to the installation provides an additional layer of protection to the network.

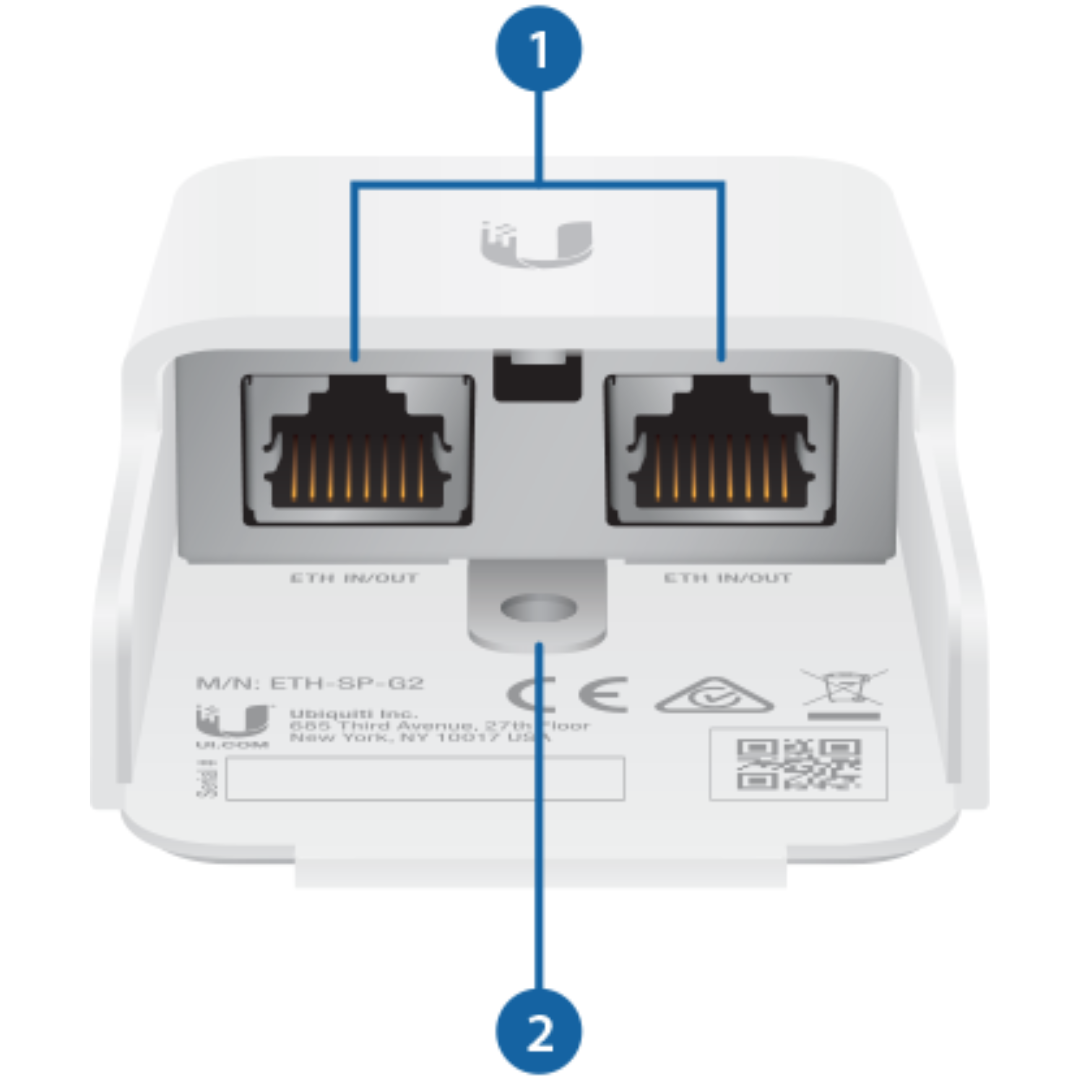

The Ubiquiti ETH-SP-G2 is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gb/s. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.

Ubiquiti ETH-SP-G2 ideal for WISP networks

All Ubiquiti airMAX devices are equipped with ESD protection. However, to protect outdoor devices, and to meet certain local code requirements, installing the Ubiquiti ETH-SP-G2  is essential.

For example, to guard against costly service calls, and to help your subscriber installations meet code requirements, install two Ubiquiti ETH-SP-G2 devices: one near the CPE, and the other at the entry point to the building. Damaging ESD attacks and surges will be absorbed by the Ubiquiti ETH-SP-G2 and safely discharged into the ground.

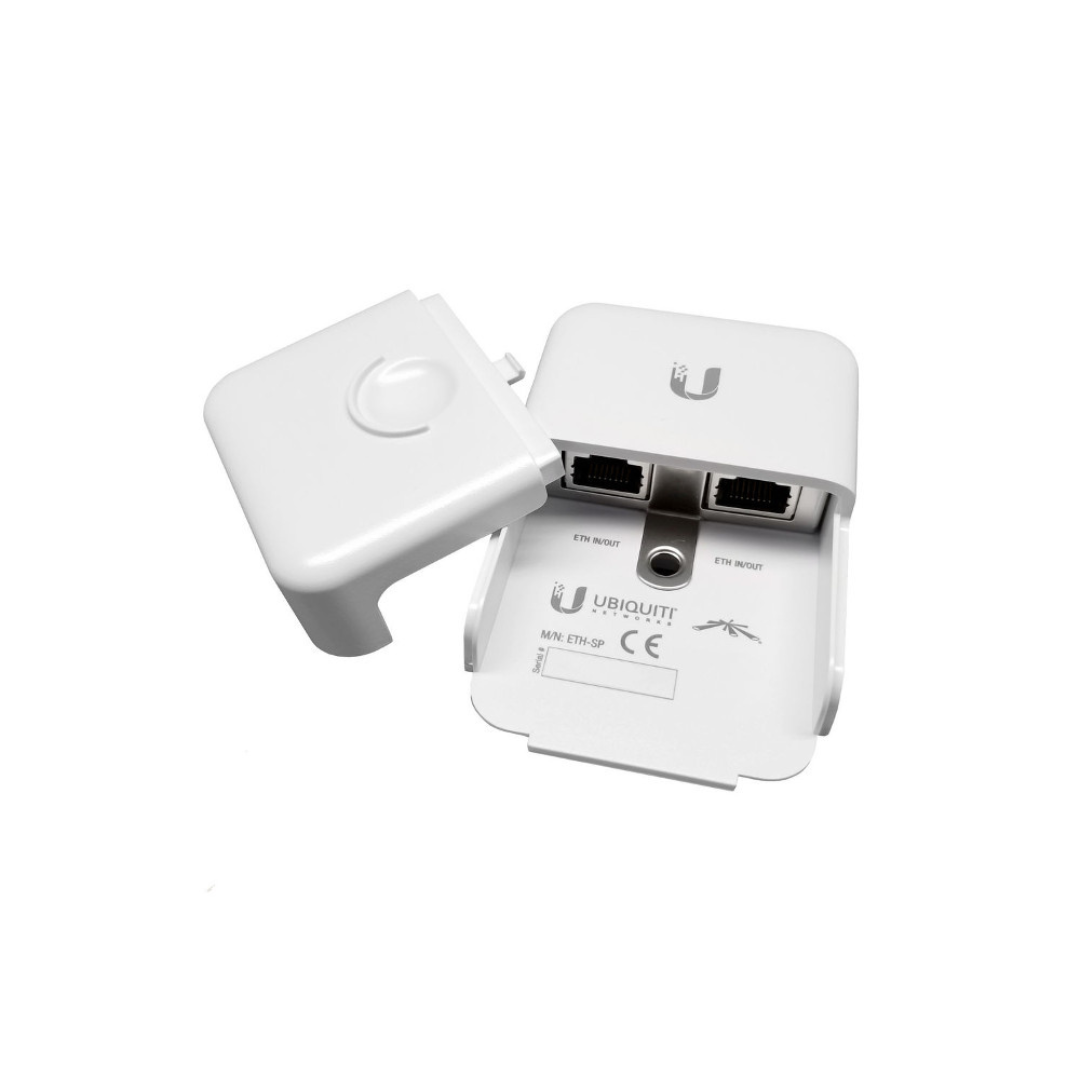

Ubiquiti ETH-SP-G2 fast installation

The Ubiquiti ETH-SP-G2 is designed for easy, plug and play installation.
