Description

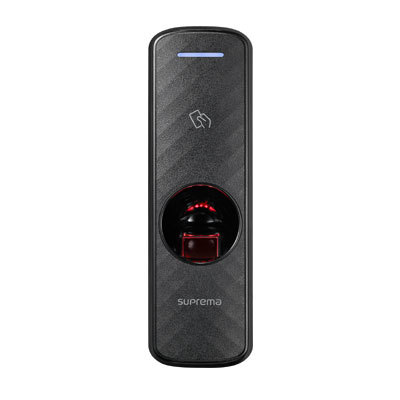

Suprema BioEntry P2 Compact IP Fingerprint Device - BEP2-OD

BEP2-OD Suprema Fingerprint Reader Controller Dual rfid
It is a Compact RFID card & Fingerprint Reader exclusively designed for centralized access control systems. Packed in a slim, mullion-type design, BioEntry R2 provides high-definition fingerprint image capture, minutiae extraction as well as dual-frequency multi RF card reading capability. Combined with Suprema’s intelligent biometric controller, the Core Station, BioEntry R2 completes biometrics-driven access control system with enhanced simplicity and level of security of centralized system topology.

Suprema BioEntry P2 BEP2-OD Suprema Fingerprint Reader Controller Dual rfid specifications
Suprema BioEntry P2 Fingerprint Sensor: Optical fingerprint sensor
Suprema BioEntry P2 RFID Technology: Supports EM, MIFARE, DESFire, HID Prox, and iCLASS
Suprema BioEntry P2 has Card Reading Distance: Up to 5 cm (1.97 inches)
Suprema BioEntry P2 Template Capacity: 20,000 (10,000 fingerprint templates and 10,000 card templates)
Suprema BioEntry P2 Event Buffer: 1,000,000 events
Suprema BioEntry P2 Communication: TCP/IP, RS-485, Wiegand, and USB
Suprema BioEntry P2 Input/Output: 2x Form C relay outputs, 2x TTL inputs, 2x Wiegand inputs, 2x Wiegand outputs
Suprema BioEntry P2 Tamper Detection: Yes
Suprema BioEntry P2 IP Rating: IP65 (Dust and waterproof)
Suprema BioEntry P2 Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Suprema BioEntry P2 Operating Humidity: 0% to 90% (non-condensing)
Power Supply: 12VDC, 1A
Dimensions: 80mm x 120mm x 32mm (3.15" x 4.72" x 1.26")
Weight: Approximately 165g (0.36 lbs)
Certifications: CE, FCC, KC, RoHS, REACH
