Stock Status:
Condition: New
SKU : 7219M68
48 × 10/100/1000BASE‑T PoE+ ports (IEEE 802.3af/at compliant).
4 × Gigabit SFP uplink ports for fiber backbone connections.
PoE+ Support: 30W per port, 380W total PoE budget.
Switching Capacity: 176Gbps.
Forwarding Rate: 130.95Mpps.
Layer‑2 Managed Features: VLAN, STP/RSTP, link aggregation, QoS, IGMP snooping.
Security: MAC filtering, ACLs, DHCP snooping, port isolation.
Management: Web GUI, CLI, SNMP, and remote management.
Cooling: Active fan cooling for stable operation.

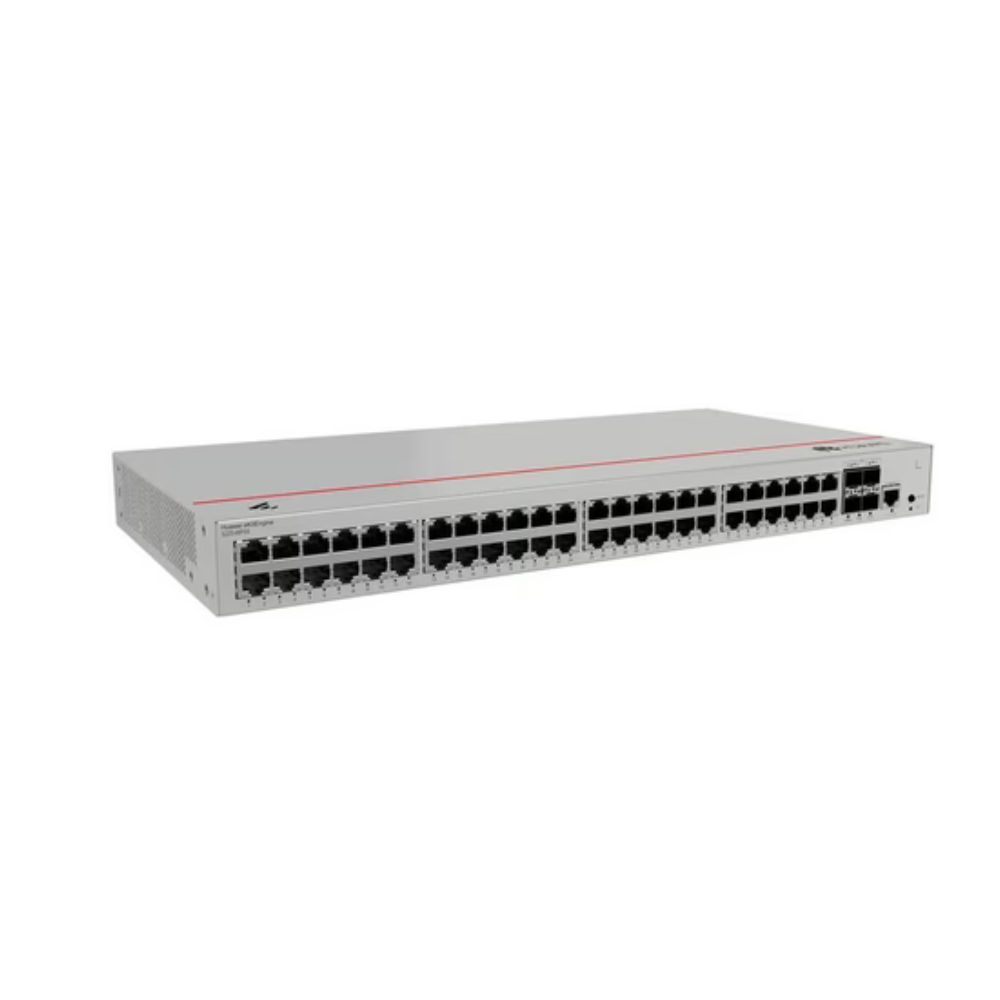

The Huawei S220‑48P4S is part of the Huawei eKitEngine S220 series, designed for SMEs, schools, hotels, and surveillance networks. It integrates 48 Gigabit Ethernet ports with PoE+ support and 4 Gigabit SFP uplinks, making it ideal for powering IP cameras, access points, and VoIP phones while providing high‑speed uplink connectivity.
48 × 10/100/1000BASE‑T PoE+ ports (IEEE 802.3af/at compliant).
4 × Gigabit SFP uplink ports for fiber backbone connections.
PoE+ Support: 30W per port, 380W total PoE budget.
Switching Capacity: 176Gbps.
Forwarding Rate: 130.95Mpps.
Layer‑2 Managed Features: VLAN, STP/RSTP, link aggregation, QoS, IGMP snooping.
Security: MAC filtering, ACLs, DHCP snooping, port isolation.
Management: Web GUI, CLI, SNMP, and remote management.
Cooling: Active fan cooling for stable operation.
| Feature | Details |
|---|---|
| Model | S220‑48P4S |
| Downlink Ports | 48 × GE RJ45 (PoE+) |
| Uplink Ports | 4 × GE SFP |
| PoE Budget | 380W (30W per port max) |
| Switching Capacity | 176Gbps |
| Forwarding Rate | 130.95Mpps |
| MAC Address Table | 16K entries |
| VLAN Support | 802.1Q VLAN, port‑based VLAN, dynamic VLAN |
| Power Supply | Built‑in AC power module |
| Cooling | Active fan |
| Mounting | 1U rack‑mountable |
| Product Description | Price Range (KES) |
|---|---|
| Huawei S220‑48P4S 48‑Port PoE+ Switch | KSh 66,900 – 85,000 |
1U rack‑mountable chassis for enterprise deployment.
Active fan cooling ensures reliable long‑term operation.
LED indicators for quick monitoring of system and port status.
Durable enterprise‑grade build for demanding environments.
SME Networks: Centralized PoE+ power for APs, IP phones, and cameras.
Surveillance: Powers large CCTV deployments with 380W PoE budget.
Hospitality: Provides stable backbone for hotels and guest Wi‑Fi.
Campus Networks: Supports VLAN segmentation and high‑speed uplinks.
Does it support PoE+? Yes, up to 30W per port, 380W total.
Is it managed or unmanaged? It’s a Layer‑2 managed switch.
Can it be rack‑mounted? Yes, it’s a 1U rack‑mountable device.
Is it noisy? It uses active fan cooling, so it’s not silent.
