Stock Status:
Condition: New
SKU : 2286M51
48 × 10/100/1000BASE‑T PoE+ ports (IEEE 802.3af/at compliant).
4 × 10G SFP+ uplink ports for high‑speed aggregation.
PoE+ Support: 30W per port, 380W total PoE budget.
Switching Capacity: 176Gbps.
Forwarding Rate: 130.95Mpps.
Layer‑2 Smart Features: VLAN, STP/RSTP, link aggregation, QoS, IGMP snooping.
Security: MAC filtering, ACLs, DHCP snooping, port isolation.
Management: Web GUI, CLI, SNMP, and remote management.
Cooling: Active fan cooling for stable operation.

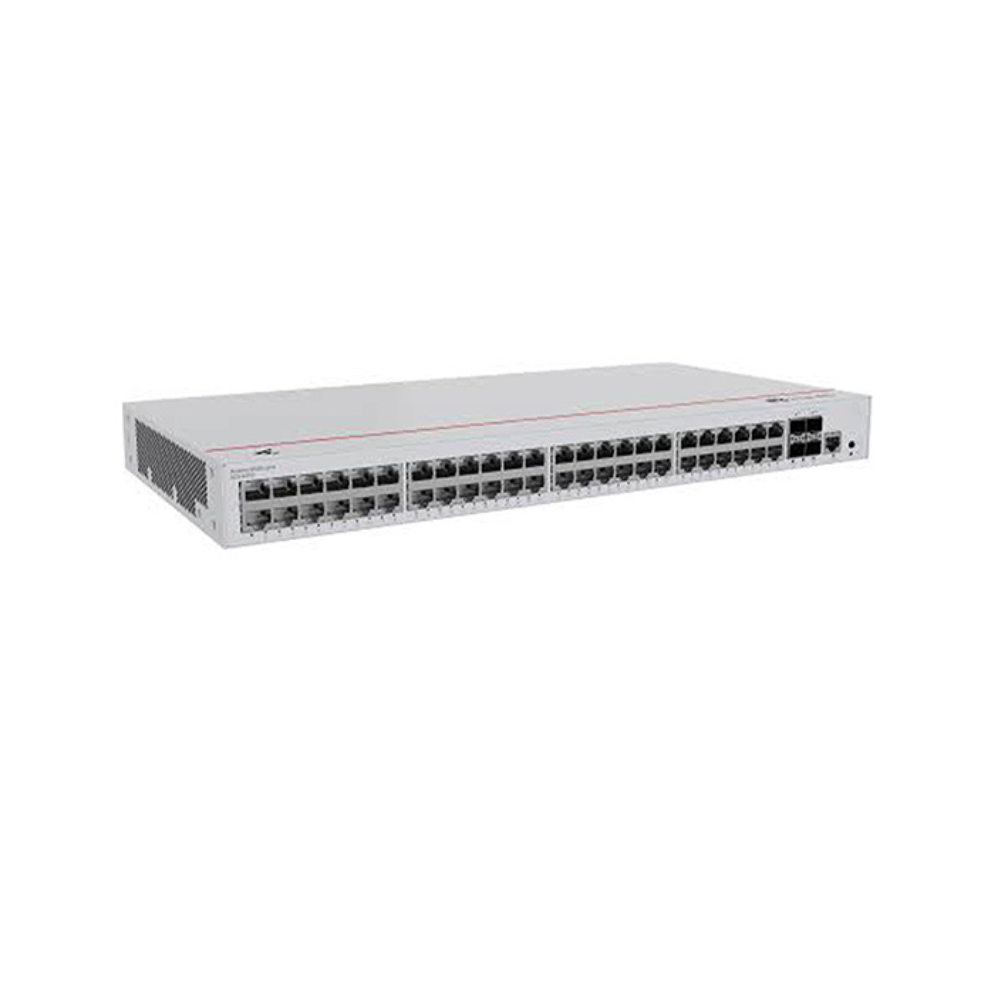

The Huawei EKit S220‑48P4X is part of the Huawei eKitEngine S220 series, designed for SMEs, schools, hotels, and surveillance networks. It integrates 48 Gigabit Ethernet PoE+ ports and 4 high‑speed 10G SFP+ uplinks, making it ideal for powering IP cameras, access points, and VoIP phones while ensuring smooth backbone connectivity. With Layer‑2 smart management features, it provides VLAN segmentation, QoS, and enhanced security.
48 × 10/100/1000BASE‑T PoE+ ports (IEEE 802.3af/at compliant).
4 × 10G SFP+ uplink ports for high‑speed aggregation.
PoE+ Support: 30W per port, 380W total PoE budget.
Switching Capacity: 176Gbps.
Forwarding Rate: 130.95Mpps.
Layer‑2 Smart Features: VLAN, STP/RSTP, link aggregation, QoS, IGMP snooping.
Security: MAC filtering, ACLs, DHCP snooping, port isolation.
Management: Web GUI, CLI, SNMP, and remote management.
Cooling: Active fan cooling for stable operation.
| Feature | Details |
|---|---|
| Model | S220‑48P4X |
| Downlink Ports | 48 × GE RJ45 (PoE+) |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Budget | 380W (30W per port max) |
| Switching Capacity | 176Gbps |
| Forwarding Rate | 130.95Mpps |
| MAC Address Table | 16K entries |
| VLAN Support | 802.1Q VLAN, port‑based VLAN, dynamic VLAN |
| Power Supply | Built‑in AC power module |
| Cooling | Active fan |
| Mounting | 1U rack‑mountable |
| Product Description | Price Range (KES) |
|---|---|
| Huawei EKit S220‑48P4X Smart Switch | KSh 71,600 – 92,000 |
1U rack‑mountable chassis for enterprise deployment.
Active fan cooling ensures reliable long‑term operation.
LED indicators for quick monitoring of system and port status.
Durable enterprise‑grade build for demanding environments.
SME Networks: Centralized PoE+ power for APs, IP phones, and cameras.
Surveillance: Powers large CCTV deployments with 380W PoE budget.
Hospitality: Provides stable backbone for hotels and guest Wi‑Fi.
Campus Networks: Supports VLAN segmentation and high‑speed uplinks.
Does it support PoE+? Yes, up to 30W per port, 380W total.
Is it managed or unmanaged? It’s a Layer‑2 smart managed switch.
Can it be rack‑mounted? Yes, it’s a 1U rack‑mountable device.
Is it noisy? It uses active fan cooling, so it’s not silent.
