Description

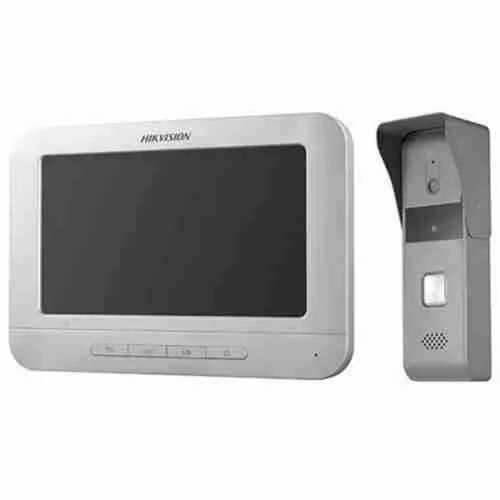

Hikvision video door phone DS-KIS203T

Water Proof Analog Kit for villa or house, only one call button
Kit including DS-KB2421T-IM and DS-KH2220, 5-meter 4-wire cable, and other accessories
European power supply adaptor included (please mark for other standards when you order)

Hikvision DS-KIS203T has Door Station/Video Parameters

Resolution1920 × 1080
Lens1/2.7″ CMOS
FOVHorizontal: 66.2°，Vertical: 37.2°
Hikvision DS-KIS203T has Door Station/Audio Parameters

Audio InputBuilt-in omnidirectional microphone
Audio OutputBuilt-in loudspeaker
Hikvision DS-KIS203T has Door Station/Device Interfaces

I/O Output1 relay output
Four-Wire1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding
Hikvision DS-KIS203T Door Station/General

Power Supply12 VDC
Power ConsumptionMax. 5W
Working Temperature-10° C to + 55° C (14° F to 131° F)
Working Humidity10% to 90%
Dimensions128 mm × 42 mm × 24.8 mm
Protective LevelIP65
Hikvision DS-KIS203T Indoor Station/Display Parameters

Operation MethodPhysical button
Type7-inch colorful TFT LCD
Resolution800 × 480
Hikvision DS-KIS203T Indoor Station/Audio Parameters

Audio InputBuilt-in omnidirectional microphone
Audio OutputBuilt-in loudspeaker
Audio QualityNoise suppression and echo cancellation
Hikvision DS-KIS203T Indoor Station/General

Power Supply12 VDC
Power Consumption≤5 W
Working Temperature-10° C to + 55° C (14° F to 131° F)
Working Humidity10% to 90%
Dimensions (W × H × D)195.8 mm × 132.8 mm × 18.39 mm (7.7″ × 5.2″ ×0.7″)
