Description

Giganet Cat 6A Cable U/UTP Outdoor

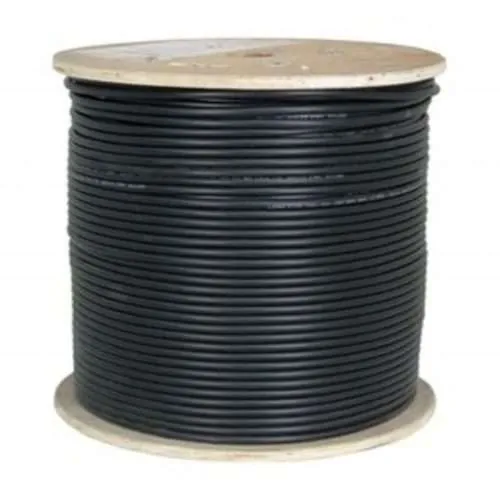

Giganet Category 6A Solid U/UTP Outdoor LDPE Cable – 305m drum GN-C6A-U/UTP-LDPE

The Giganet Category 6A 500Mhz U/UTP LDPE cable has been designed and manufactured to exceed ANSI/TIA-568.2-D, ISO/IEC 11801-1, and EN 50173-1 performance requirements. The cable is ideal for 10 Gigabit networks. The four pairs are individually wrapped with aluminum foil tape with an overall aluminum foil with drain wire to provide immunity from Alien Crosstalk (electromagnetic noise that can occur from one pair to an adjoining cable) and external EMI. The Cat 6A system supports emerging and convergence applications, performance, and ease of termination.

External Grade
Insulation Thickness – 0.23mm or 0.0091inches
Outdoor type
Four-Number of Pairs
UV and Moisture Resistant polyethylene Outer Sheath
Supports Gigabit Ethernet
23AWG {0.575mm (0.023 in.)} conductor
Insulation – LDPE
Jacket – PE
