Description

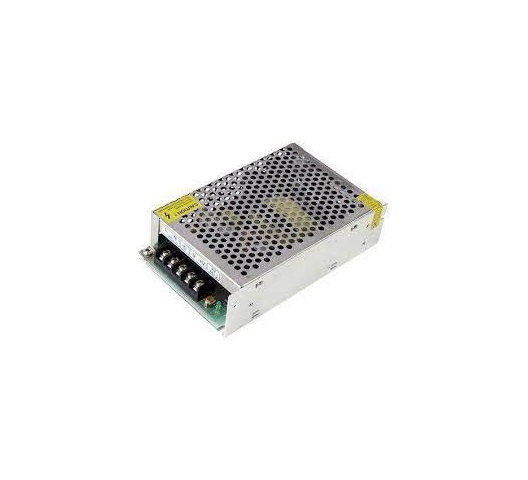

CCTV Open Power Supply 20amps

Brand: PowerSupply1
Complies with RoHS Directive
AC Input Voltage Range: 85-132/ 170-264VAC Selected by Switch
Input Frequency: 47-63Hz
Inrush Current: Cold Start, 20A/115V, 40A/230V
Input Leakage Current: <0.7mA/230V

CCTV power supply 12V 20amps Open is a highly reliable, universal AC input/full range single output power supply. It has the approval of UL and CE and comes 100% full load burn-in tested and comes with overload/over and voltage/short circuit protection. Also included is a 2-year manufacturer’s warranty. Dimensions: 7.96 x 3.92 x 1.6.

-Brand: PowerSupply1
-Complies with RoHS Directive
-AC Input Voltage Range: 85-132/ 170-264VAC Selected by Switch
-Input Frequency: 47-63Hz
-Inrush Current: Cold Start, 20A/115V, 40A/230V
-Input Leakage Current: <0.7mA/230V
-Line Regulation (Full Load): <± 0.5%
-Output Voltage Adj. Range: ± 10%
-Output Overload Protection: 110-130% Constant Current, Auto Recovery
-Output Over-Voltage Protection: 115-150%
-Withstand Voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
-Rise Time: 50ms@full load (typical)
-Hold Up Time: 20ms@full load (typical)
-Operating temp.& humidity: -10°C to 50°C (14°F – 122°F), 20%-93%RH (non-condensing)
