Description

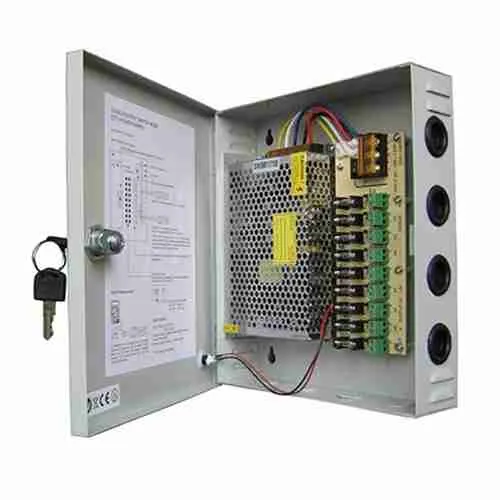

CCTV Closed Power Supply 12V 30Amps

CCTV Power Supply Unit 12V 5A Amps Closed
CCTV cameras – Power supply for 32 channel

DC VOLTS – 12V

total output – 30 Amp

Input – AC 110 V-240 V

category – CCTV cameras

12V 30 Amp CCTV Power Supply Open  is a  240W 712V/30A Highly Reliable, Universal AC input/full range single output power supply. They have the approval of UL and CE and come 100% full load burn-in tested and are protected with overload/over and voltage/short circuit.

Brand: PowerSupply1
Complies with RoHS Directive
AC Input Voltage Range: 85-132/ 170-264VAC Selected by Switch
Input Frequency: 47-63Hz
Inrush Current: Cold Start, 20A/115V, 40A/230V
Input Leakage Current: <0.7mA/230V
Line Regulation (Full Load): <± 0.5%
Output Voltage Adj. Range: ± 10%
Output Overload Protection: 110-130% Constant Current, Auto Recovery
Output Over Voltage Protection: 115-150%
Withstand Voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
Rise Time: 50ms @full load (typical)
Hold Up Time: 20ms @full load (typical)
Operating temp.& humidity: -10°C to 50°C (14°F – 122°F), 20%-93%RH (non-condensing)
Storage temp.& humidity: -20°C to 85°C (-4°F – 185°F), 20%-93%RH (non-condensing)
Safety Standards: GB4943, UL60950, EN60950
EMC Standards: GB9254, EN55022 classA
Cooling Method: Convection
